Sampling Valve

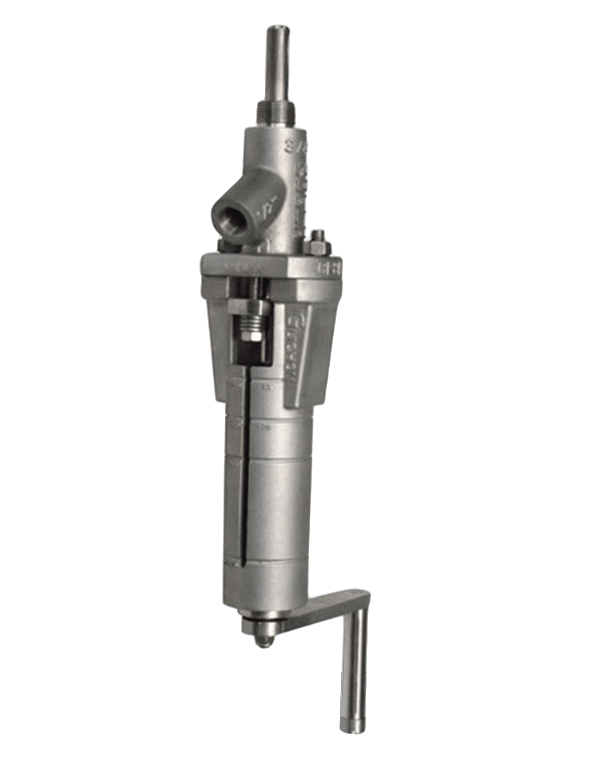

Sampling Valve with adjustable piston length

PN 100
DN 3/4" Inlet 1/2" outlet
NPS 3/4" NPT-M Inlet - 1/2" NPT-F outlet
Class 600#
Temperature Rating 300 degrees
Body forms

Standard 60° angle outlet
other angles
angles possible.
possible.
Basic Shell materials

Housing 316L (ASTM A351 CF8M)
Non-pressure parts SS304
Bolting A4

Connections

NPT Threaded ends
Or connections on request
Operation & Options

Adjustable piston in three options
- 0 mm flush to tank
- 25mm extension
- 50 mm extension
Packing PTEE or Graphite
Manual lever or automated
Application

Liquids, Gas
Liquids with solid particles
Powder and powdery media
High viscosity fluids
Approvals

PED, CE, ASME
FDA, BAM
