HF valves
HF valves conform UOP (Conocophillips)
The Alkylation units is a conversion processes used in petroleum refineries. It is used to convert isobutane and low-molecular-weight alkenes (primarily a mixture of propene and butene) into alkylate, a high octane gasoline component. This process occurs in the presence of a strong acting acid such as sulfuric acid or hydrofluoric acid (HF) as catalyst. Depending on the acid used, the unit takes the name of SAAU (Sulphuric Acid Alkylation Unit) or HFAU (Hydrofluoric Acid Alkylation Unit).
HF (Hydrofluoric acid) valves are specialized valves designed to handle the highly corrosive and toxic hydrofluoric acid, commonly used in alkylation processes. Constructed from corrosion-resistant materials like Monel or Hastelloy, these valves ensure safety and reliability in harsh environments. They feature tight sealing mechanisms, such as bellows seals, to prevent leaks and minimize risks to personnel and equipment. HF valve designs reduce dead spaces to prevent acid accumulation and corrosion. Often integrated with automation systems, they enable precise control and rapid response. Regular maintenance and inspection are critical for ensuring long-term performance and safety in HF acid applications.

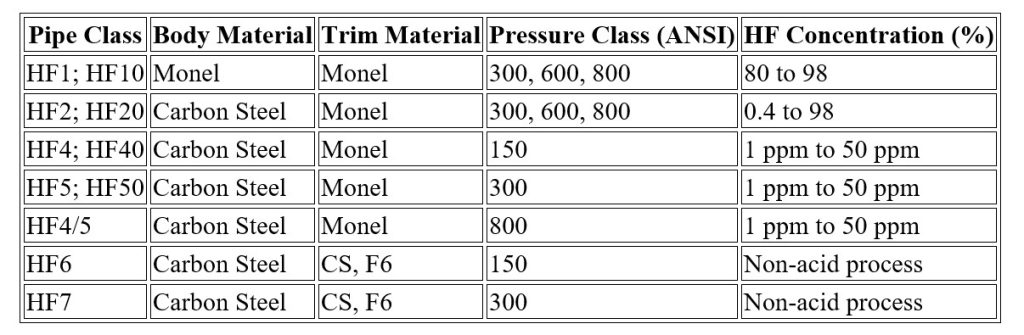

The material(s) of valves will be determined to which pipe class they will fall under and to which HF concentration they are suitable to use.
Pipe : Class : Body : material : Trim : Class : HF concentration
- HF1; HF10 Monel Monel 300, 600, 800 80 to 98
- HF2; HF20 Carbon steel Monel 300, 600, 800 0,4 to 98
- HF4; HF40 Carbon steel Monel 150 1ppm to 50ppm
- HF5; HF50 Carbon steel Monel 300 1ppm to 50ppm HF4/5 Carbon steel Monel 800 1ppm to 50ppm HF6 Carbon steel CS, F6 150 Non acid process
- HF7 Carbon steel CS, F6 300 Non acid process
HF GATE VALVES
Scope of supply
We can supply below HF valves for alkylation services conform to UOP & Conocophillips standards.
- Gate valves
- Bellow sealed globe valves
- Piston check valves
- Swing check valves
- Plug valves
Let DVV be your trusted partner for supplying your HF valves. Please contact our sales partner Dutch Valve Vision today to learn more about our products & services and how we can support your site and project needs.
